AF16 compact E-Stop Switch
The unibody design is efficient and elegant, extending only 19.5mm behind the panel compared with conventional e-stops which average 23.5mm. by reducing the depth and volume, these e-stops keep equipment and control panels compact yet safe.
Advantages
● Compact design, Depth behind the panel:19.5mm
●Secure locking structure
●Direct open-circuit action function
● Complies with standard IEC69047-5-1, IEC60947-5-5
Feature
● Three operator sizes:φ24mm,φ 27mm and φ32mm
● Solder tab compatible with 110# quick disconnects or Solder terminal 2.8*3.5
● Degree of protection: IP65
● Optional switch guards, nameplates and mounting adaptor
Applications
Machinery
Automation
Medical
Control panel

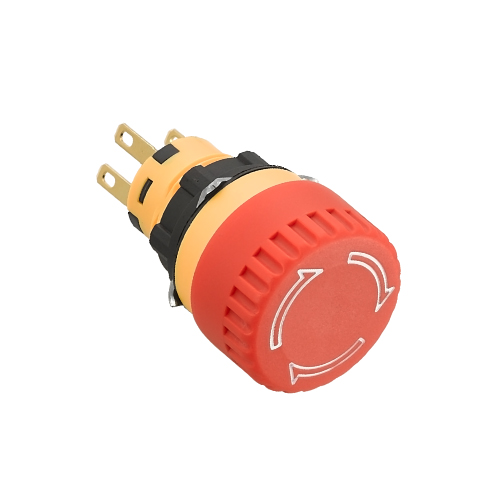

图1

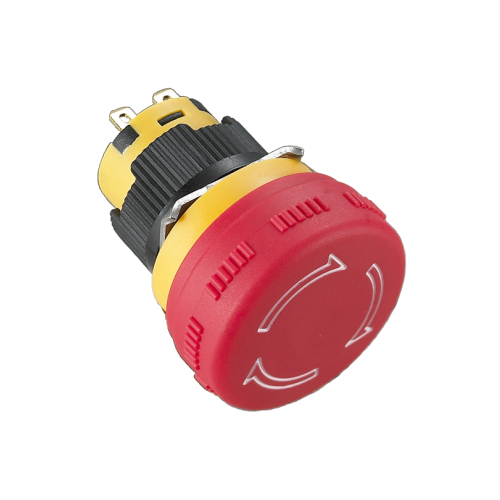

图2

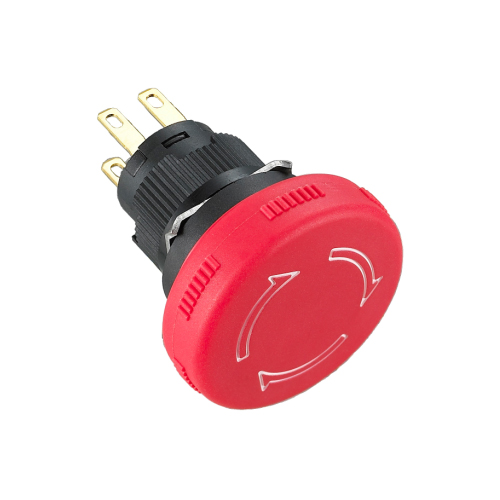

图3
Model specifications

Product type

Function

Emergency stop switches

Series

AF16

Front

Style

Mushroom-head

Size

Φ24mm\Φ28mm\Φ32mm

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Operating part colors

Red

Illumination

Non-Illuminated

Switch Type

Switching action

Maintained

Release type
Twist to unlock clockwise

Contacts

1NO+1NC,2NC

Terminal

Soldering/Tab terminal #110\ Soler terminal 2.8*3.5

Other

Protection   degreen

IP65

Complete Device/Components

Complete evice

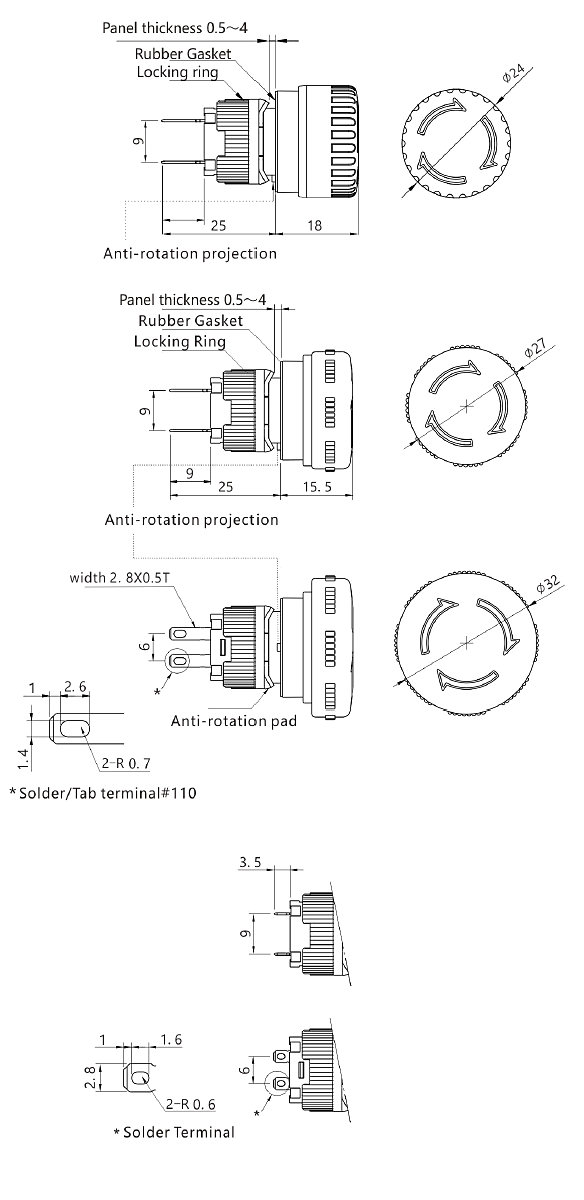

Dimensional drawing
AF16 compact
