S22 Vandal resistant Socket USB&RJ45 Socket
Φ22mm vandal resistant Socket USB & RJ45, Type C etc, compact design, Combine rugged and style
Features
● φ22mm
● SUS304 or Aluminium are available
● Flat or Raised with Cover
● USB3.0 ,USB2.0 and RJ45
● Optional the length of cable
● IP40/IP67(Raised with Cover)
1
2
3
4
5
Model specifications

Product type

Function

Vandal resistant Socket

Series

S22

Front

Style

Flush,Rasied,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Lens Material

SUS 304\ Alumminum oxidizes

Illumination

Non-Illuminated

Socket Type

USB

2.0 1P\2P,3.0 1P\2P

RJ45\Type C


Connector

Cable\Socket

Other

Protection     degreen

Ip65,IP67

Complete   Device/Components

Complete evice

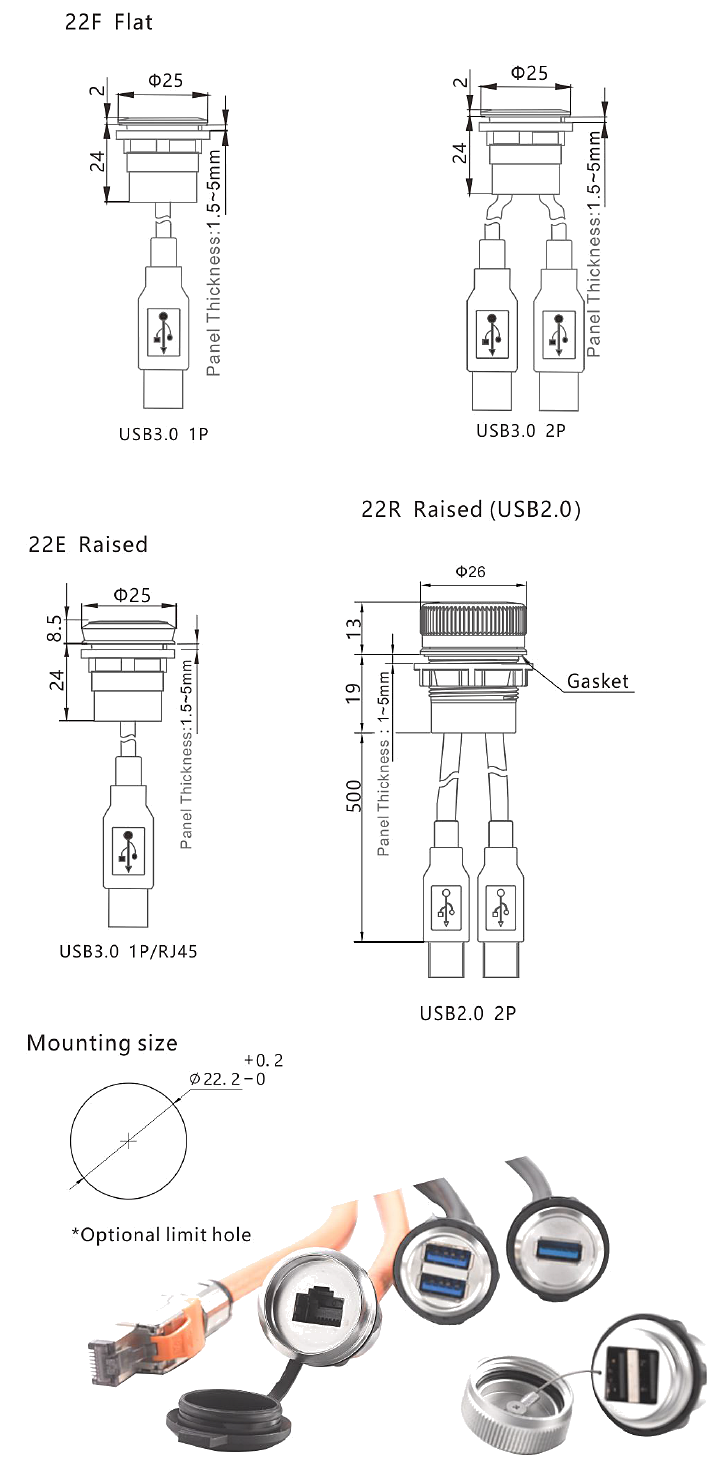

Dimensional drawing
S22 Vandal resistant Socket
Download
File name File type Update Date
S22 USB&J45 Socket .PDF 01/04/2025 Download(569.95 KB)
