AF16L larger operator ring illluminated pushbuttons
Ring illuminated pushbuttons available in flush or extened pushbuttons
Advantages
Optional plastic or metal lens
Flush or raised construction
Illumination, optionally with symbol
Customised labelling possible
Range of switching elements and ease of mounting
Internationally recognised and approved series
IP67 protection
Features
● Removable contact blocks, with up to 3PDT contacts
● 2 operator shapes: flush type(AF16LF) and Extend type(AF16LE)
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● Solder tab compatible with 110# quick disconnects
● With guards to prevent false actuation
● Degree of protection: IP67
Application
Medical
Automation
Machinery
Consumer Applications

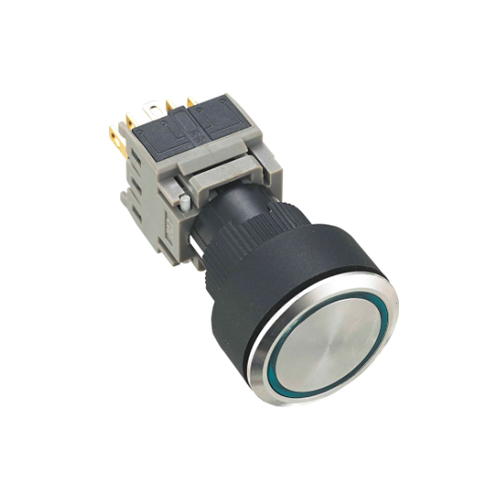

图1

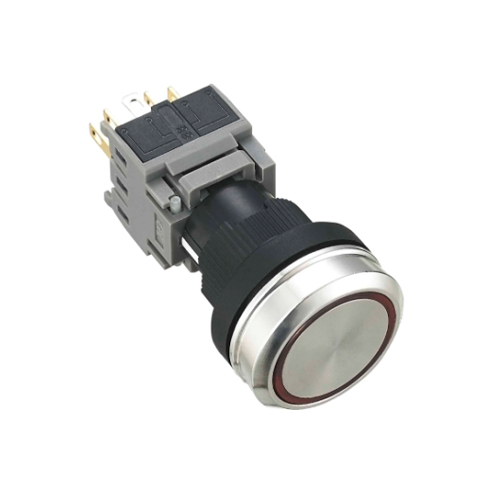

图2
Model specifications

Product type

Function

Illuminated Pushbuttons

Series

AF16L

Front

Style

Large operation with ring illumination

From

Flush/Raised

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

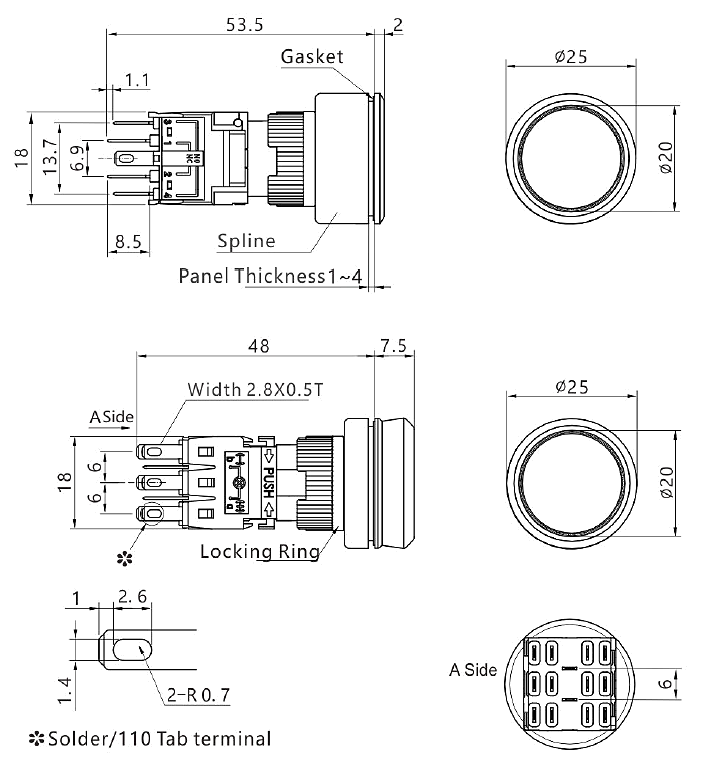

Dimensional drawing
AF16L larger operator
Download
File name File type Update Date
AF16L pushbuttons .PDF 12/30/2024 Download(696.85 KB)
