AF16L larger operator Selector switches
AF16L selector switches are mechanical switches that can be turned right, center or left to open to close the electric. They are mostly used to start/stop devices or switch between two/three electric circuits.
Features
● 2-position and 3-position selector switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 2 operator shapes: flush type(AF16LF) and Extend type(AF16LE)
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP67

Application
Medical
Automation
Machinery
Consumer Applications

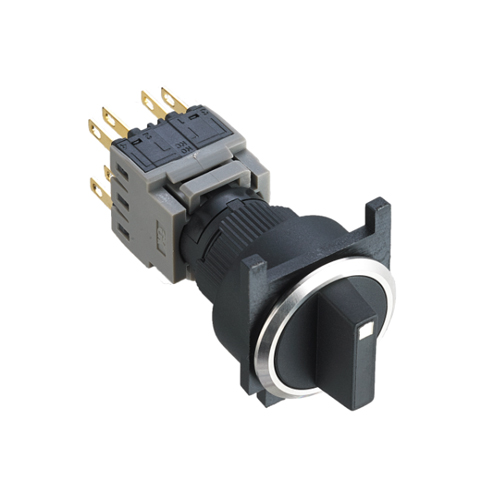

图1

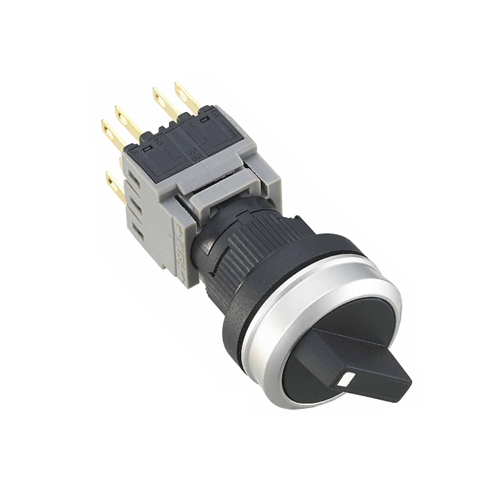

图2
Model specifications

Product type

Function

Selector switches

Series

AF16L

Front

Style

Larger Operating

From

Flush/Rasied

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Operating parts colors

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching positions

2 positions/3positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP40,IP65,IP67

Complete   Device/Components

Complete Device

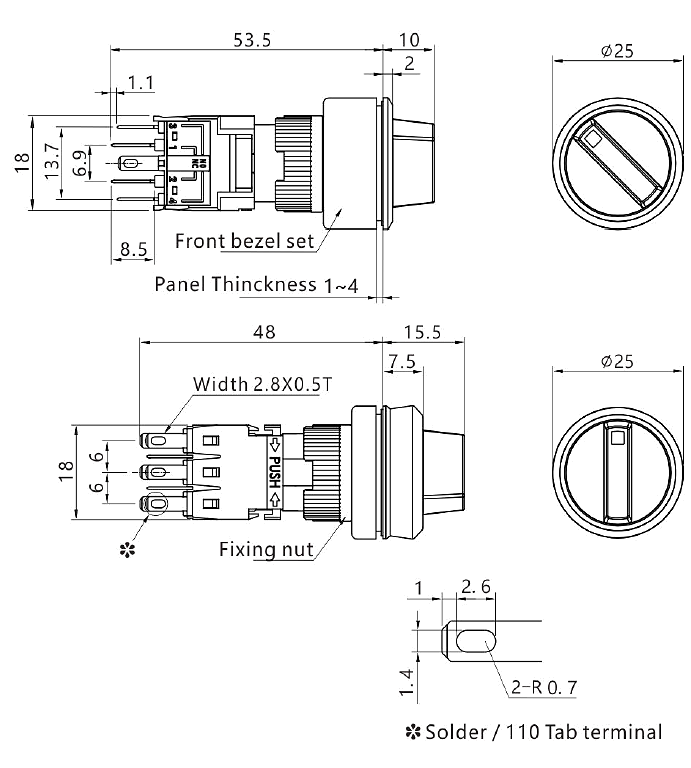

Dimensional drawing
AF16L larger operator
Download
File name File type Update Date
AF16L Selector switches .PDF 12/30/2024 Download(684.35 KB)
